WAINLUX K10-5W Laser Engraving Machine

A Compact 5W Blue Diode Laser for Small-Format Marking and Cutting

The WAINLUX K10-5W is a desktop laser engraving machine built around a 455 nm blue diode laser source. It is designed for small-format work: the 10 × 10 cm work area suits personalized gifts, craft pieces, prototypes, and light small-batch production. This is a compact, enclosed unit intended for a desk or small workshop, not a large-format industrial system.

If you are evaluating this machine for a product line, a craft business, or as a reseller, the key points to compare are the laser type and power, the work area size, the cutting capability on plywood, and how the machine is controlled. The K10-5W covers those basics with a 5 W blue diode, a 10 × 10 cm bed, and the ability to cut 3–5 mm plywood.

Core Specifications at a Glance

What the 455 nm Blue Diode Means for Your Application

The K10-5W uses a 455 nm blue diode laser. Blue diode lasers are a common choice in this class of desktop engraver because the shorter wavelength is absorbed well by a range of materials, which makes them effective for marking wood, leather, and many coated or dark surfaces. For a buyer, the practical question is not just the wavelength but what it allows the machine to do at this power level.

At 5 W, this is an entry-level to mid-range power for a desktop diode engraver. It is well suited to engraving and marking tasks on materials such as wood, bamboo, leather, acrylic, glass, slate, paper, and canvas. It can also cut thin plywood: the rated capacity is 3–5 mm. If your parts are thicker than 5 mm plywood, or if you need to cut dense hardwood or metal, this machine is not the right fit—that requires a higher-power laser or a different laser source altogether.

Work Area and Part Size Planning

The 10 × 10 cm work area defines the maximum size of a single job. This is a key constraint for production planning. A single pass can process a piece up to 10 cm in each direction. For larger pieces, you would need to split the design into multiple jobs and reposition the material, which adds alignment complexity. For small items like keychains, badges, coasters, tags, or small leather goods, the 10 × 10 cm area is usually sufficient and keeps the machine footprint small.

Control and Connectivity: Wi-Fi, PC, and Offline Modes

The K10-5W offers three ways to operate: Wi-Fi, PC connection, and offline mode. The Wi-Fi option lets you send files from a mobile device or a computer without a physical cable, which is convenient when the machine is set up on a workbench. PC control gives you a direct wired workflow for design software. Offline mode means the machine can run a job without being tethered to a computer after the file is transferred, which is useful for repeating the same job multiple times in a small-batch run.

For a buyer planning a production workflow, the ability to run offline is a practical advantage: an operator can queue a job and have the machine run it independently, freeing up the computer for other design work.

Enclosed Design for Safer Desktop Operation

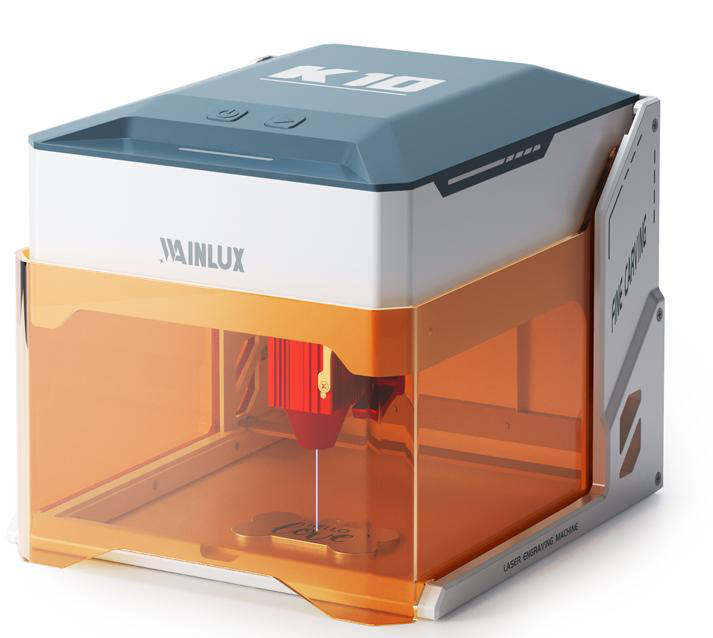

The K10-5W features a fully enclosed housing with a tinted transparent shield around the work area. This is a significant consideration for a desktop machine. An enclosed design helps contain the laser beam and reduces the risk of accidental exposure, which matters in a home, school, or small workshop environment. It also helps contain fumes and debris generated during engraving, keeping the work area cleaner. The enclosed structure is part of the machine's safety design, but it does not replace the need for proper ventilation or following the manufacturer's operating instructions.

Material Compatibility and What to Verify

Based on the machine's specifications and typical use cases for this class of blue diode engraver, the K10-5W is suited for marking on a variety of materials. The following table summarizes the general capability and what a buyer should verify for their specific material:

This table reflects the machine's known capability with common materials. For a specific material you intend to process, we recommend sending a sample for a test engraving to confirm the result before committing to a production order.

Typical Applications and Production Workflow

The K10-5W is positioned for small-format, high-variety work. Common use cases include personalized gifts (keychains, coasters, jewelry boxes), signage and tags, leather goods branding, acrylic awards, and decorative items. Its compact footprint and enclosed design make it a practical fit for a retail customization counter, a design studio, a school workshop, or a small production cell.

For a small-batch workflow, the offline mode is a key feature. An operator can load a design, transfer it to the machine, and then run the job without keeping a computer connected. This allows the machine to process a batch of identical items while the operator prepares the next design or handles other tasks. When planning a batch, factor in the 10 × 10 cm work area: if your parts fit within that area, the machine can process them without repositioning.

Manufacturer Background and Support

The WAINLUX K10-5W is manufactured by Xiamen Spring Technology Co., Ltd., a company founded in 1998 that specializes in thermal printers, laser engraving machines, and heat press machines. The company holds ISO9001 certification for its quality management system covering manufacturing and trading operations, and exports to more than 50 countries across North America, Southeast Asia, and global markets.

For buyers, this means the machine comes from an established manufacturer with a dedicated R&D team and production lines, and OEM/ODM services are available. One-to-one engineer support is offered for each order, covering sample confirmation, technical testing, and after-sales service. This can be particularly valuable if you are integrating the machine into a product line or need custom branding.

Buyer FAQ
